5563205304F
LED PNL MT 1"" DOMED GRNManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

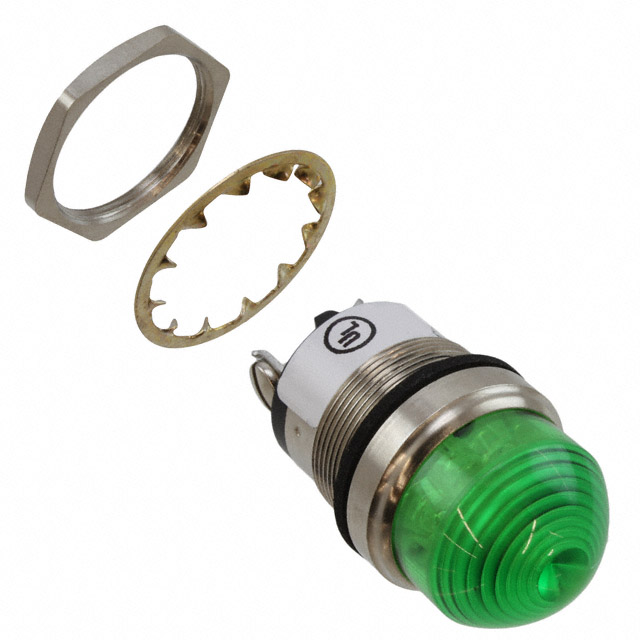

The Dialight 556 Series LED Panel Indicator, part number 5563205304F, is a green LED designed for robust panel mounting applications. This component features a distinct domed lens and operates at 125V with a typical current draw of 8.5mA. The indicator is equipped with screw terminals for secure connection and offers IP66 and NEMA 4X ingress protection, making it suitable for harsh environments. Its 1-inch mounting diameter with a 1.12-inch (28.45mm) panel cutout ensures straightforward integration into control panels and equipment. This reliable indicator finds application in industrial automation, control systems, and heavy equipment where clear visual status indication is critical.
Additional Information
Series: 556RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 8.5mA |
| Voltage | 125V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | AC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
