5563204304F
LED PNL MT 1"" DOMED GRNManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

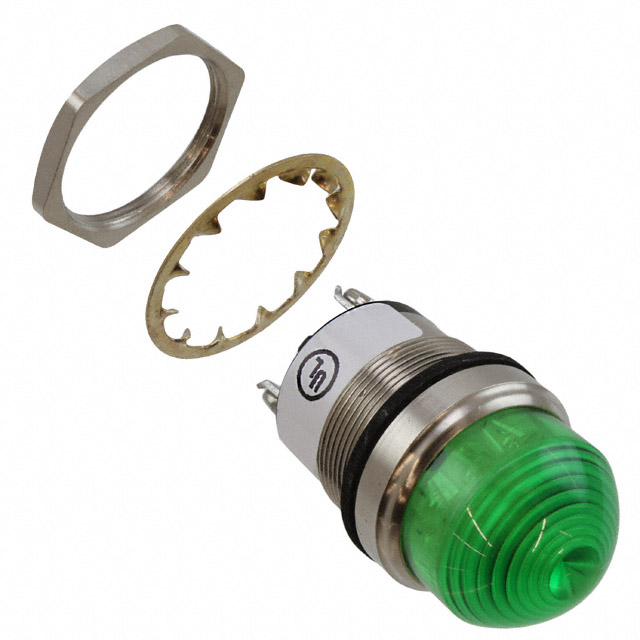

Dialight 556 Series LED Panel Indicator, Part Number 5563204304F. This robust indicator features a bright green LED with a domed lens, providing excellent visibility. Designed for industrial and commercial applications, it operates at 24V with a typical current draw of 40mA. The unit offers superior protection with IP66 and NEMA 4X ingress protection ratings, making it suitable for harsh environments. Termination is facilitated by convenient screw terminals. The panel cutout diameter is 1.12 inches (28.45mm) for a standard round panel mount. This component is commonly utilized in control panels, machinery, and automation systems where reliable visual status indication is critical.
Additional Information
Series: 556RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 40mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
