5561703304
LED PNL MT 1"" 12V WT FLAT YELManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

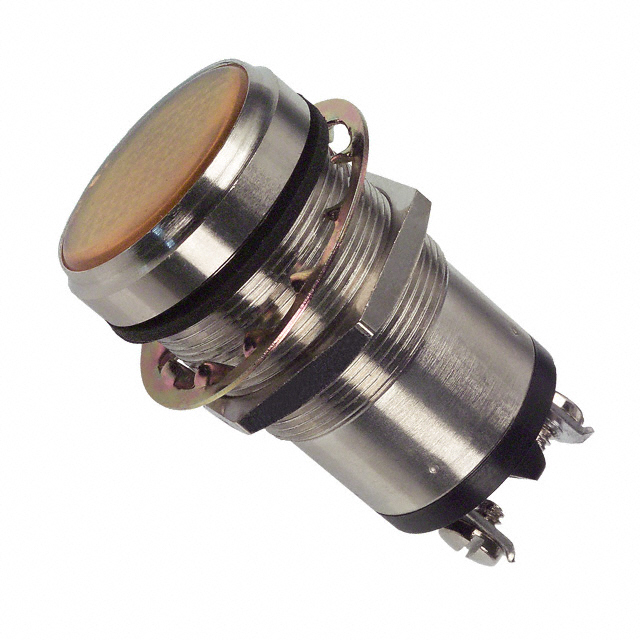

Dialight 556 Series LED Panel Indicator, part number 5561703304, is a robust yellow LED designed for panel mounting applications. Featuring a 12V DC rating and a current draw of 95mA, this unit offers a Fresnel lens for enhanced visibility and a flat top lens style. Its screw terminal termination ensures secure connections. With an IP66 and NEMA 4X ingress protection rating, it is suitable for demanding environments across industrial automation, control systems, and heavy equipment industries. The panel cutout dimension is 1.12 inches (28.45mm) in a round shape.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 95mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Yellow |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
