5561605304
LED PNL MT 1"" 125VAC WT FLAT GRNManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

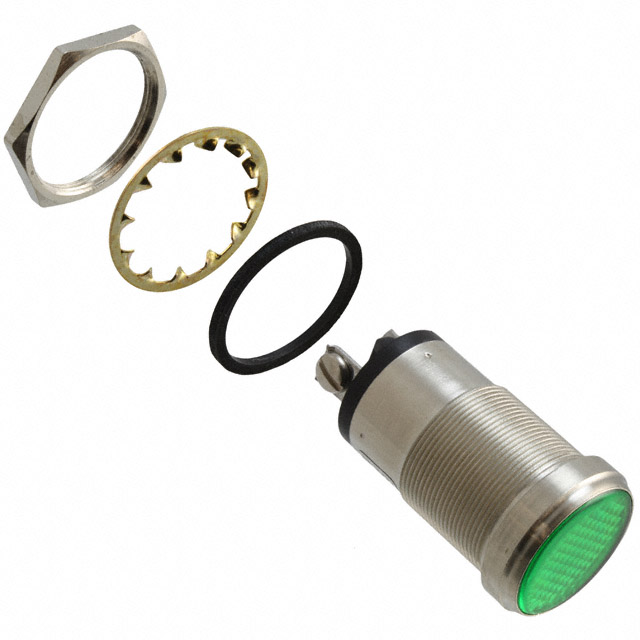

Dialight 556 Series LED Panel Indicator, Part Number 5561605304, features a green Fresnel lens with a flat top for enhanced visibility. This component is rated for 125VAC and draws a nominal current of 9.5mA. Designed for panel mounting with a 1.12" (28.45mm) round cutout, it offers IP66 and NEMA 4X ingress protection for robust environmental sealing. The termination style is screw terminal for secure connections. This indicator is commonly utilized in industrial automation, control panels, and heavy equipment applications where reliable visual feedback is critical.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 9.5mA |
| Voltage | 125V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | AC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
