5561604304
LED PNL MT 1"" 24V WT FLAT GRNManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

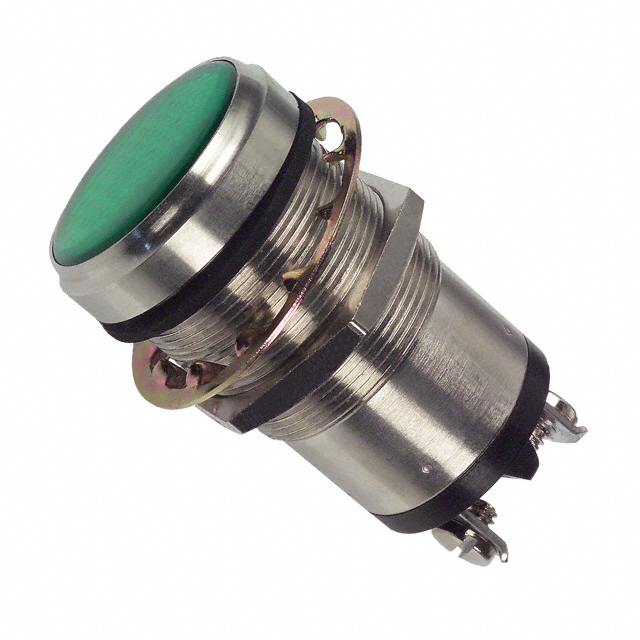

Dialight 556 Series LED Panel Indicator, part number 5561604304. This robust panel mount indicator features a 24VDC rating and a 32mA current draw. It utilizes a green LED with a green Fresnel lens for clear visibility. The unit offers IP66 and NEMA 4X ingress protection, ensuring reliable operation in harsh industrial environments. Termination is via screw terminals for secure connections. The mounting requires a 1.12" (28.45mm) round panel cutout. This component is commonly employed in industrial automation, control panels, and equipment status indication.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 32mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
