5561603304
LED PNL MT 1"" 12V WT FLAT GRNManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

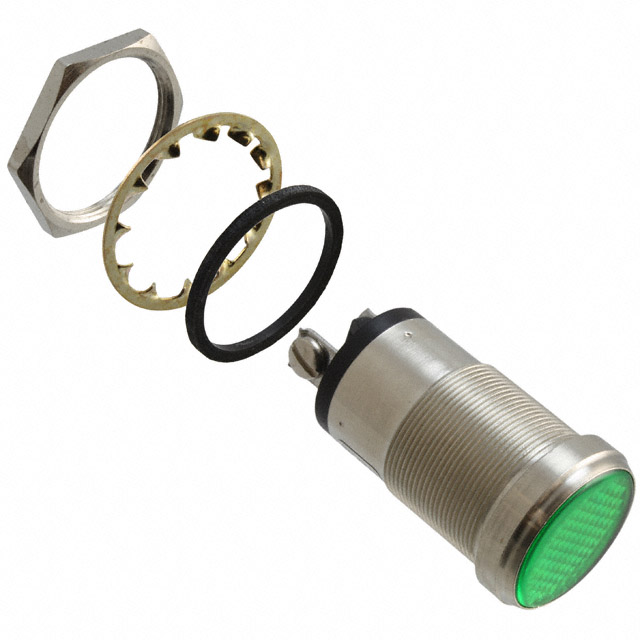

Dialight 556 Series LED Panel Indicator, Part Number 5561603304. This 12V, 60mA LED indicator features a green Fresnel lens with a flat top for clear visibility. Designed for panel mounting with a 1.12" (28.45mm) round cutout, it offers robust IP66 and NEMA 4X ingress protection. The screw terminal termination style ensures secure connections. This component is suitable for applications in industrial automation, control panels, and heavy equipment where reliable visual status indication is critical.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 60mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
