5561503304
LED PNL MT 1"" 12V WT FLAT REDManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

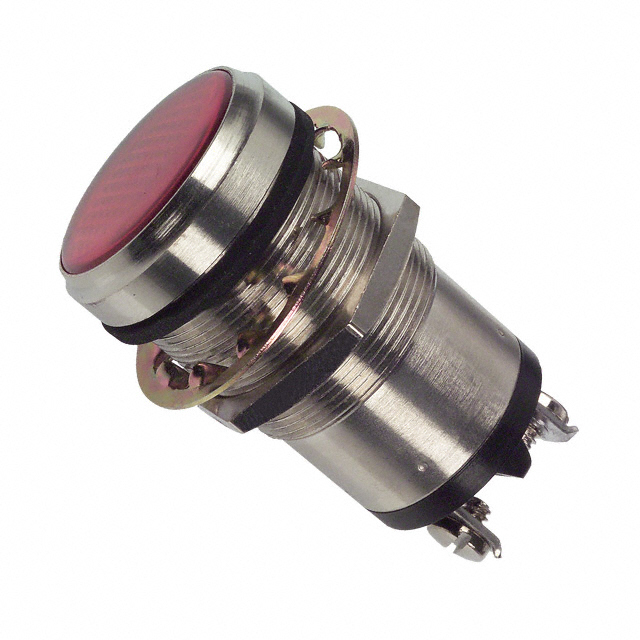

Dialight 556 Series LED Panel Indicator, Part Number 5561503304, is a robust component designed for critical applications. This 12V LED features a bright red Fresnel lens for enhanced visibility and a flat top lens style. With a panel cutout of 1.12 inches (28.45mm) and a secure screw terminal for termination, it offers reliable installation. Rated for DC operation at 95mA, this indicator boasts IP66 and NEMA 4X ingress protection, ensuring durability in harsh environments. It is commonly specified for industrial control, automation, and equipment signaling across various manufacturing sectors.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 95mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
Request a Quote
