5988340112F
LED YELLOW CLEAR 1208 R/A SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

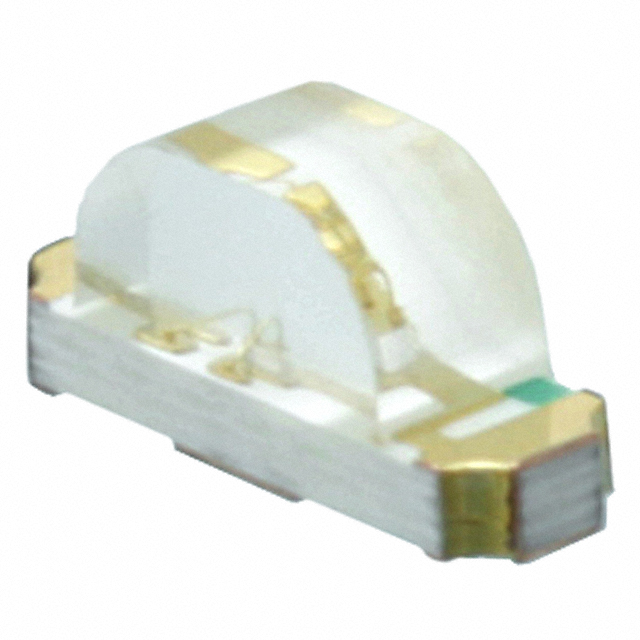

The Dialight 598 Series 5988340112F is a yellow, right-angle surface-mount LED with a dominant wavelength of 592nm. This discrete LED component features a clear, colorless lens with a domed top, measuring 2.00mm x 1.00mm, and a typical forward voltage of 2V at 20mA. The 1208 package provides a 160° viewing angle and a millicandela rating of 140mcd. This component is suitable for applications in industrial controls, instrumentation, and general indication.
Additional Information
Series: 598RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 2-SMD, No Lead |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 140mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 592nm |
| Supplier Device Package | 1208 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
