5988320112F
LED RED CLEAR 1208 SMD R/AManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

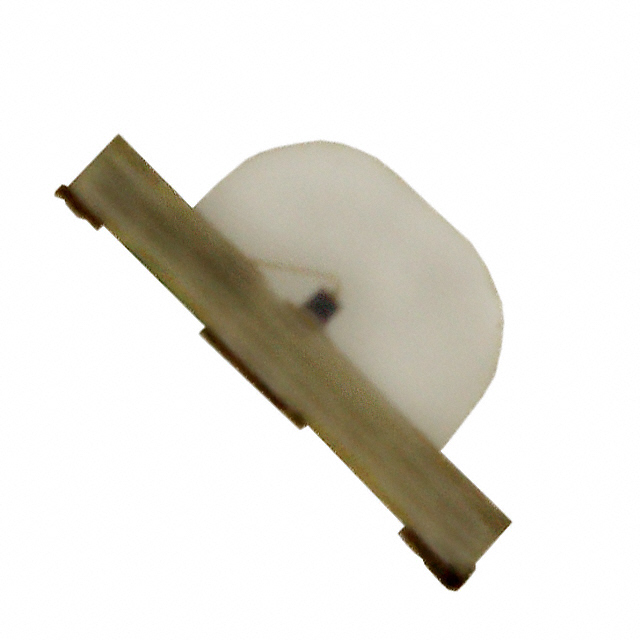

Dialight 598 series 1208 SMD R/A LED, part number 5988320112F, offers a red, 625nm dominant wavelength with a typical forward voltage of 2V at 20mA. This discrete LED features a clear, colorless lens with a domed top, measuring 2.00mm x 1.00mm, providing a wide 160° viewing angle. The component is housed in a 2-SMD, No Lead package, specifically the 1208 footprint, designed for surface mounting at a right angle. With a millicandela rating of 120mcd, this LED is suitable for indication applications across various industries including industrial controls, consumer electronics, and automotive systems. It is supplied in strip packaging.
Additional Information
Series: 598RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 120mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | 1208 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
Request a Quote
Clients Also Buy
5988070107F
LED GREEN CLEAR 0603 SMD

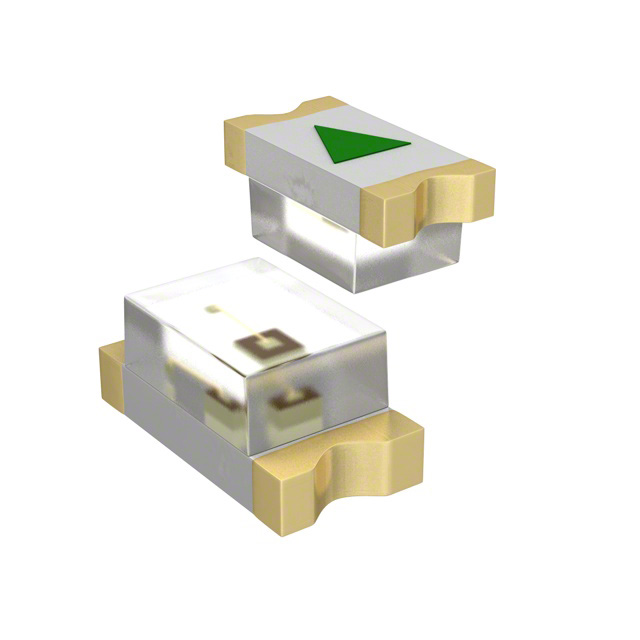

5988010100F
