5977781702F
LED BLUE/RED 4PLCC SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

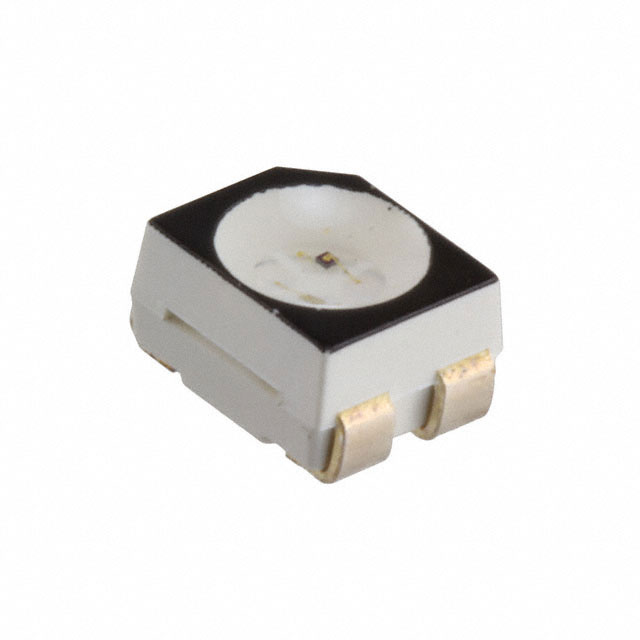

The Dialight 597 series, part number 5977781702F, is a bicolored LED component designed for surface mount applications. This 4-PLCC packaged device features distinct blue and red light emission, with dominant wavelengths of 467nm and 625nm respectively. Optimized for indication, it provides a typical forward voltage of 3V for the blue LED and 1.9V for the red LED. Both colors exhibit a millicandela rating of 100mcd at a test current of 10mA, with a wide viewing angle of 120°. The component measures 3.20mm L x 2.80mm W with a maximum height of 2.10mm. This discrete LED is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 4-PLCC |
| Color | Blue, Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd Blue, 100mcd Red |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 3V Blue, 1.9V Red |
| Lens Color | - |
| Current - Test | 10mA Blue, 10mA Red |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 467nm Blue, 625nm Red |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.29mm Dia |
