5977761202F
LED GREEN/ORANGE CLEAR 4SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

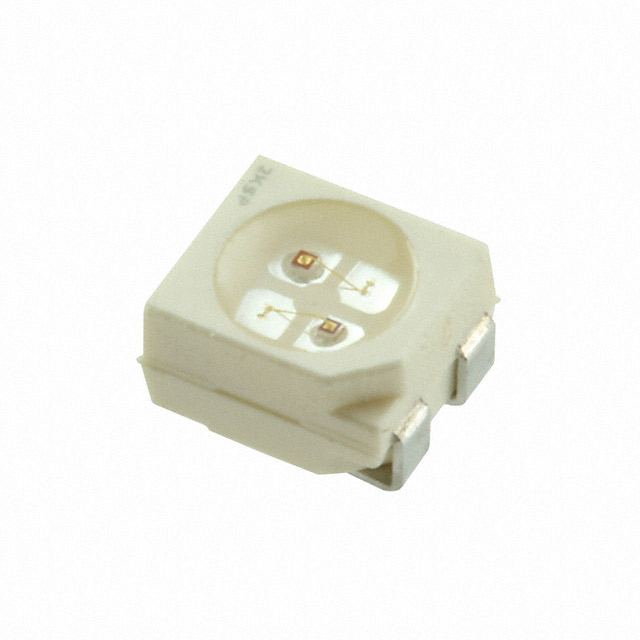

Dialight microLED® series, part number 5977761202F, is a surface-mount, 4-SMD LED indicator. This component features independent Green and Orange emitters within a 4-PLCC package. The Green LED exhibits a typical forward voltage of 2V and a peak wavelength of 557nm, while the Orange LED also operates at 2V forward voltage with a peak wavelength of 610nm. Both emitters are rated for 10mA test current, delivering 2.5mcd luminous intensity. The clear lens has a diameter of 2.39mm and a round with flat top style, providing a wide 120° viewing angle. Dimensions are 3.20mm L x 2.80mm W, with a maximum height of 1.91mm. This component is suitable for applications in consumer electronics, industrial automation, and medical equipment requiring dual-color LED indication.
Additional Information
Series: microLED®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 4-PLCC |
| Color | Green, Orange |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2.5mcd Green, 2.5mcd Orange |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Orange |
| Lens Color | Colorless |
| Current - Test | 10mA Green, 10mA Orange |
| Viewing Angle | 120° |
| Height (Max) | 1.91mm |
| Wavelength - Peak | 557nm Green, 610nm Orange |
| Wavelength - Dominant | - |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.39mm Dia |
