5977752002F
LED GREEN/RED CLEAR 4PLCC SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

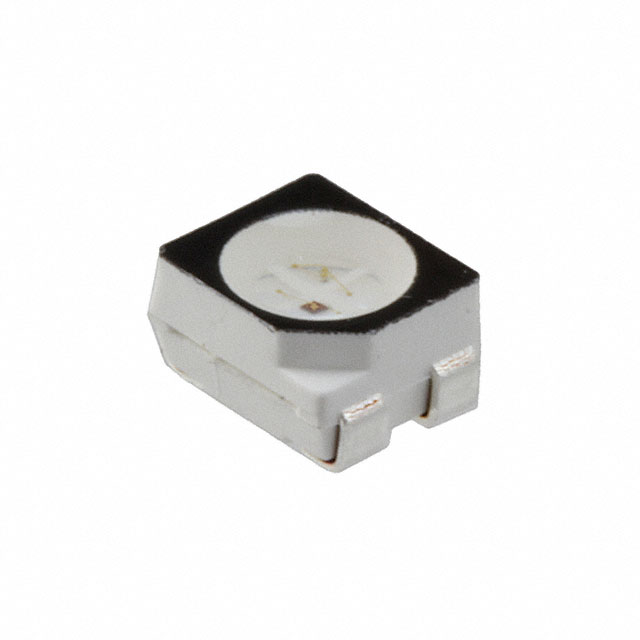

Dialight microLED® 5977752002F is a surface-mount, bi-color LED designed for indication applications. This 4-PLCC package features a clear, colorless lens with a 120° viewing angle. The component offers both green (525nm dominant wavelength) and red (625nm dominant wavelength) illumination. Typical forward voltage is 3.15V for the green emitter and 2V for the red emitter, both rated at 20mA test current. The green emitter provides a millicandela rating of 850mcd, while the red emitter delivers 350mcd. This discrete LED is commonly utilized in industrial automation, medical equipment, and consumer electronics. The device is supplied in bulk packaging.
Additional Information
Series: microLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SMD, J-Lead |
| Color | Green, Red |
| Size / Dimension | 3.10mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 850mcd Green, 350mcd Red |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 3.15V Green, 2V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | - |
| Wavelength - Peak | - |
| Wavelength - Dominant | 525nm Green, 625nm Red |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.39mm Dia |
