5977717502F
LED RGB DIFFUSED 0404 SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

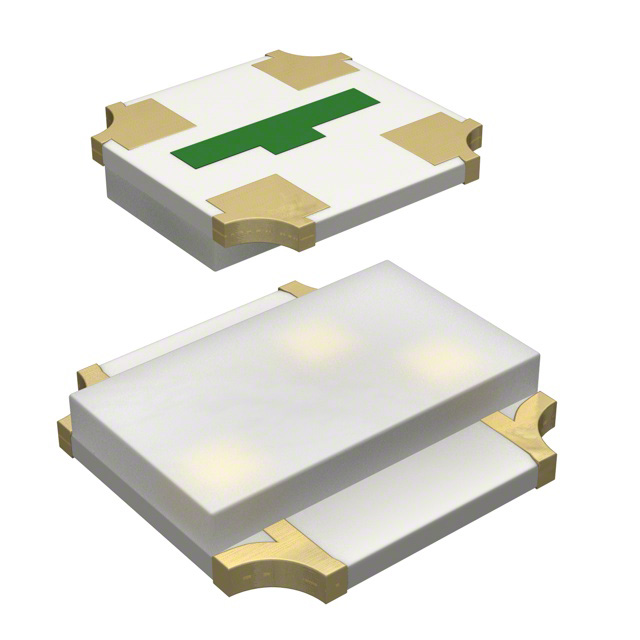

Dialight 597 Series 0404 SMD LED, part number 5977717502F, offers a diffused Red, Green, and Blue (RGB) output in a compact 1.00mm x 1.00mm package. This common anode device features typical forward voltages of 2.2V for Red, 3.3V for Green, and 3.2V for Blue, with test currents of 5mA for each color. The dominant wavelengths are 624nm (Red), 527nm (Green), and 470nm (Blue), providing distinct color outputs with millicandela ratings of 35mcd (Red), 110mcd (Green), and 45mcd (Blue). The lens is a diffused white rectangle with a flat top, measuring 1.00mm x 0.60mm, and offers a wide viewing angle of 120° for Red and Blue, and 116° for Green. This component is suitable for surface mount applications, typically used in industrial automation, consumer electronics, and medical devices for status indication and visual feedback.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 0404 (1010 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 35mcd Red, 110mcd Green, 45mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.3V Green, 3.2V Blue |
| Lens Color | White |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 120° Red, 116° Green, 120° Blue |
| Height (Max) | 0.20mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue |
| Supplier Device Package | 0404 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.60mm |
