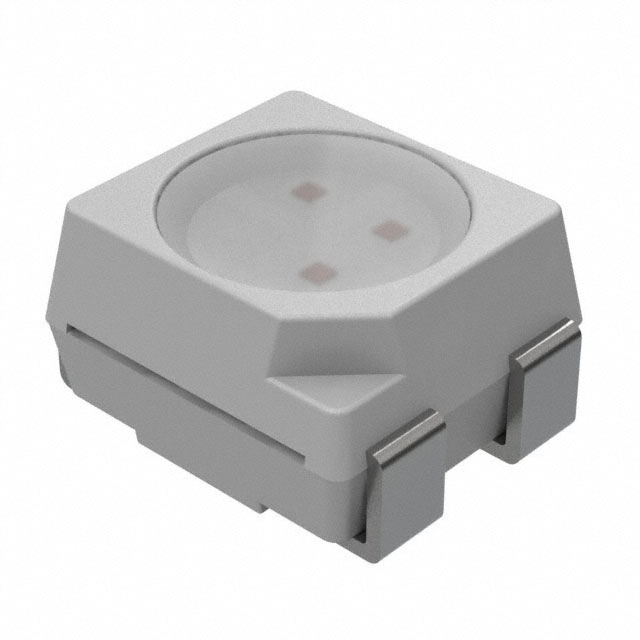

5977711302F
LED RGB CLEAR 4SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More
Dialight 597 Series LED Indication - Discrete, part number 5977711302F, offers a surface-mount RGB solution in a 4-SMD, J-Lead package. This clear lens component features a common anode configuration with distinct dominant wavelengths of 626nm (Red), 525nm (Green), and 470nm (Blue). Forward voltage typicals are 1.9V for Red, and 3.4V for Green and Blue at a 20mA test current. Luminescence is rated at 80mcd (Red), 160mcd (Green), and 40mcd (Blue). The compact package dimensions are 3.10mm L x 2.84mm W with a maximum height of 1.95mm. This component is suitable for applications in industrial controls, consumer electronics, and automotive lighting. The viewing angle is 120°.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 4-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.10mm L x 2.84mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 80mcd Red, 160mcd Green, 40mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.4V Green, 3.4V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 1.95mm |
| Wavelength - Peak | 635nm Red, 523nm Green, 468nm Blue |
| Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.39mm Dia |
