5977701502F
LED GREEN/RED CLEAR 4SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

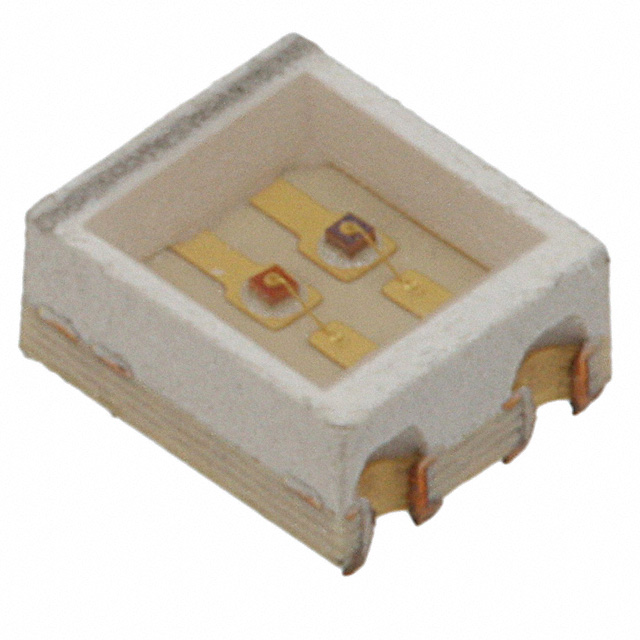

Dialight 597 Series bi-color LED, part number 5977701502F. This 4-SMD, No Lead component features independent Green (575nm dominant, 570nm peak) and Red (653nm dominant, 650nm peak) emitters. Forward voltage is 2.2V for Green and 2V for Red, with a test current of 20mA for both. Millicandela ratings are 16mcd for Green and 6.3mcd for Red, both with a 100° viewing angle. The LED has a clear, colorless lens with a rectangular, flat-top style measuring 2.30mm x 2.10mm. Package dimensions are 3.00mm L x 2.50mm W, with a maximum height of 1.30mm. This component is commonly found in industrial automation, medical equipment, and consumer electronics for status indication. Supplied in strip packaging.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 4-SMD, No Lead |
| Color | Green, Red |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 16mcd Green, 6.3mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 100° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 570nm Green, 650nm Red |
| Wavelength - Dominant | 575nm Green, 653nm Red |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 2.10mm |
