5977701207
LED GREEN/RED CLEAR 4PLCC SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

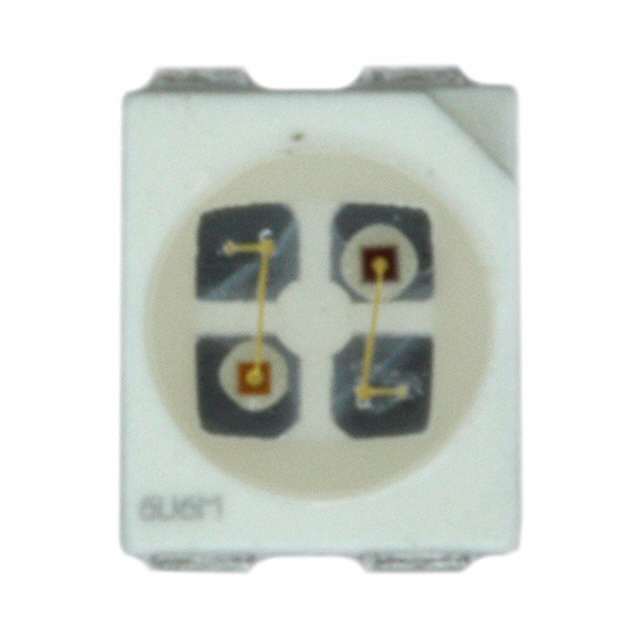

Dialight 597 Series, 5977701207 is a surface-mount, bi-color LED housed in a 4-PLCC package. This component features independent control for its green and red emitters, providing a 570nm (green) and 628nm (red) dominant wavelength respectively. Typical forward voltage is 2.1V for green and 2V for red, both tested at 20mA, yielding a luminous intensity of 16mcd for each color. The LED has a clear, colorless lens with a round, flat-top style and a 120° viewing angle. Dimensions are 3.20mm L x 2.70mm W with a maximum height of 1.90mm. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication and signaling applications. Supplied on tape and reel.
Additional Information
Series: 597RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Red |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 16mcd Green, 16mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 565nm Green, 630nm Red |
| Wavelength - Dominant | 570nm Green, 628nm Red |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
