5976401602F
LED YELLOW CLEAR 1206 SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

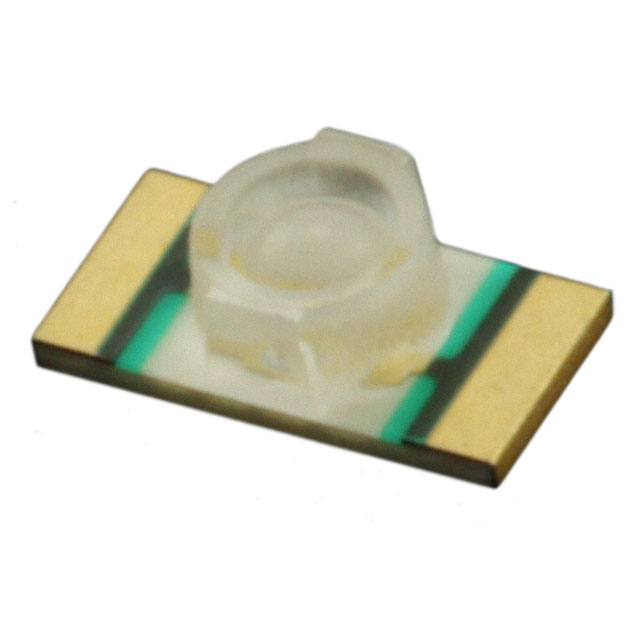

Dialight 597 Series yellow LED, part number 5976401602F, is a discrete surface-mount component featuring a 1206 (3216 Metric) package. This LED emits a dominant wavelength of 587nm with a peak wavelength of 588nm, providing a clear yellow light. With a typical forward voltage of 2V and a test current of 20mA, it achieves a millicandela rating of 239mcd. The LED has a round lens with a flat top, measuring 1.60mm in diameter, and a colorless lens transparency. Its dimensions are 3.20mm L x 1.60mm W, with a maximum height of 1.10mm. The mounting type is surface mount, bottom entry, and it is supplied in strips. This component is commonly utilized in industrial control, consumer electronics, and telecommunications applications for status indication.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 1206 (3216 Metric) |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 239mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 588nm |
| Wavelength - Dominant | 587nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 1.60mm Dia |
