5973401407NF
LED YELLOW CLEAR 1206 SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

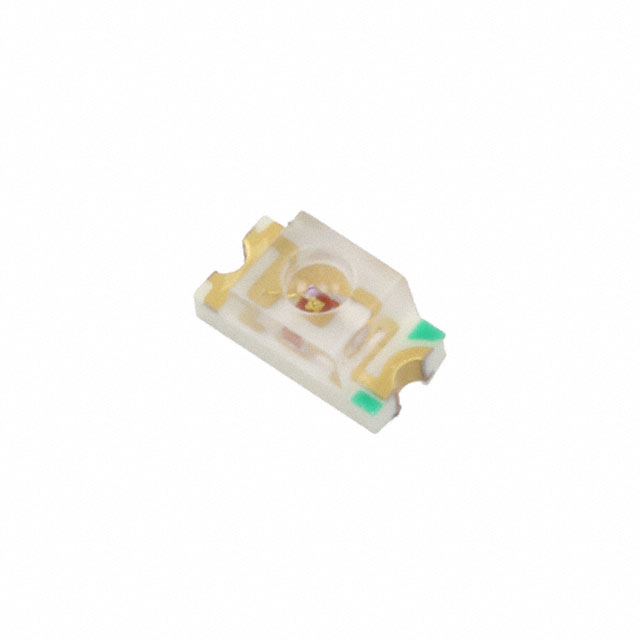

Dialight 597 Series Yellow LED, part number 5973401407NF, is a discrete component designed for surface mount applications. This 1206 package LED emits a dominant wavelength of 592nm with a peak wavelength of 580nm, producing a clear yellow light. It features a standard configuration with a forward voltage of 2.2V (typical) at a test current of 20mA, yielding a luminous intensity of 20mcd. The LED has a 70° viewing angle and a clear, colorless lens with a round, flat-top profile. This component is suitable for use in industrial automation, telecommunications, and medical equipment, where reliable visual indication is critical. Packaged on tape and reel, its dimensions are 3.00mm in length and 1.50mm in width, with a maximum height of 1.90mm.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Yellow |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 20mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 580nm |
| Wavelength - Dominant | 592nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
