5973301107
LED GREEN CLEAR 1210 SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

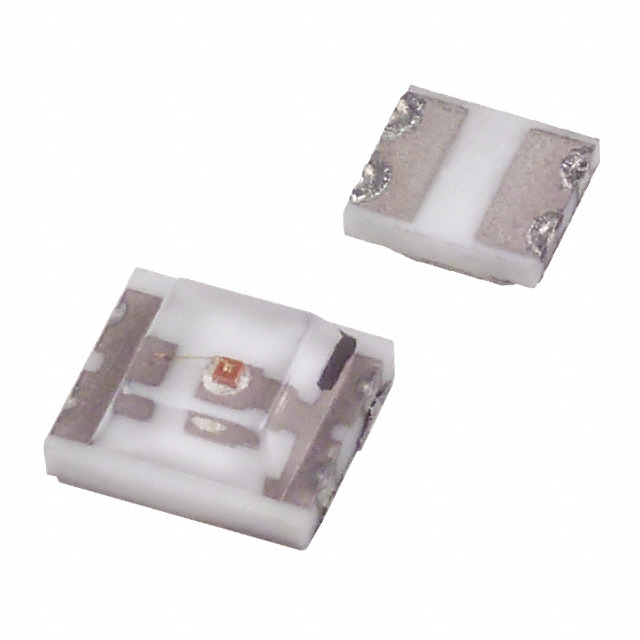

Dialight 597 Series Green 565nm LED, part number 5973301107, is a discrete surface-mount device designed for indication applications. This 1210 package LED features a clear, colorless lens with a square, flat-top style, measuring 1.70mm. The component offers a wide viewing angle of 170° and a typical forward voltage of 2V. It is rated for 12mcd luminous intensity at a test current of 20mA. The LED is supplied on tape and reel. This component is commonly utilized in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: 597RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Green |
| Size / Dimension | 2.54mm L x 3.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 12mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 1.21mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 565nm |
| Supplier Device Package | 1210 |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 1.70mm |
