5973211202F
LED ORANGE 2PLCC SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

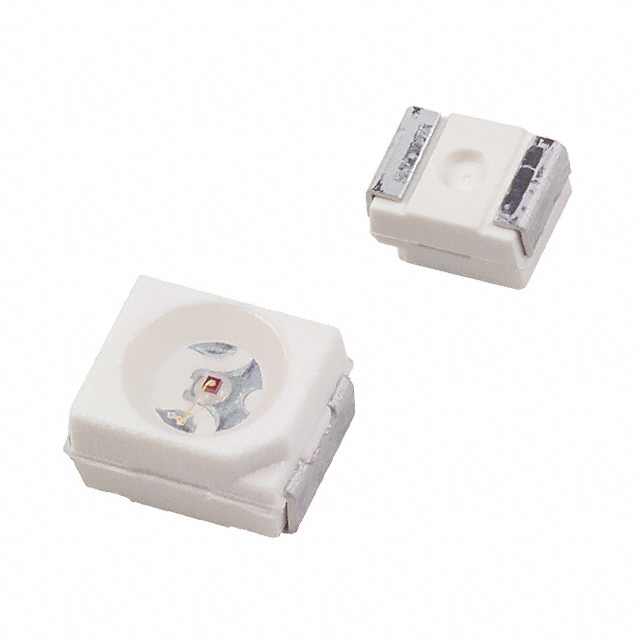

Dialight microLED® Orange LED Indication - Discrete, part number 5973211202F, is designed for reliable surface mount applications. This 2-PLCC package features a standard configuration with a forward voltage of 2V (typical) and a test current of 10mA, achieving a luminous intensity of 6.3mcd. The LED emits a distinct orange light with a peak wavelength of 610nm and offers a broad 120° viewing angle. Its compact dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.11mm make it suitable for space-constrained PCB designs. This component is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment for status indication. Offered in strip packaging.
Additional Information
Series: microLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 2-PLCC |
| Color | Orange |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 6.3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.11mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.39mm Dia |
