5973121207F
LED RED CLEAR 2PLCC SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

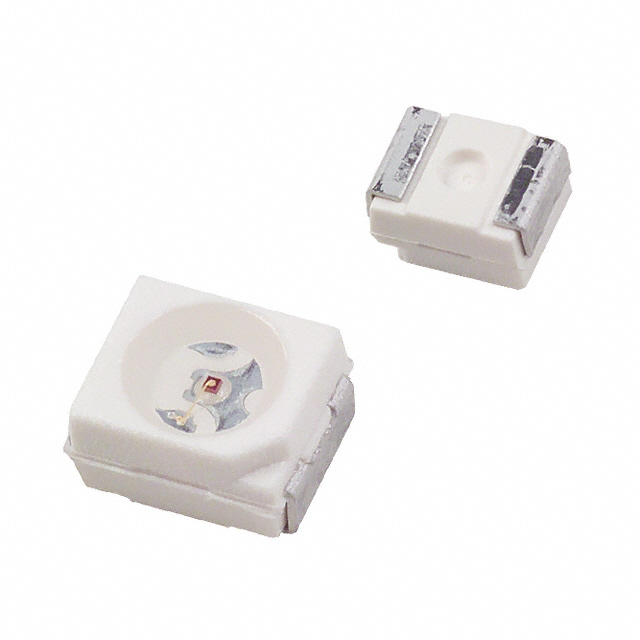

Dialight 597 Series Red 645nm LED, part number 5973121207F, is a surface-mount component designed for clear indication. This 2-PLCC package features a standard configuration with a forward voltage of 1.75V (typical) and a dominant wavelength of 645nm. The LED exhibits a millicandela rating of 35.5mcd at a test current of 10mA, with a peak wavelength of 660nm. Its colorless lens is clear, with a round with flat top style and a diameter of 2.39mm. The component measures 3.20mm L x 2.80mm W with a maximum height of 2.11mm, offering a wide 120° viewing angle. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 35.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.75V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.11mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 645nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.39mm Dia |
