5973111107F
LED RED 660NM 4SMD 1210Manufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

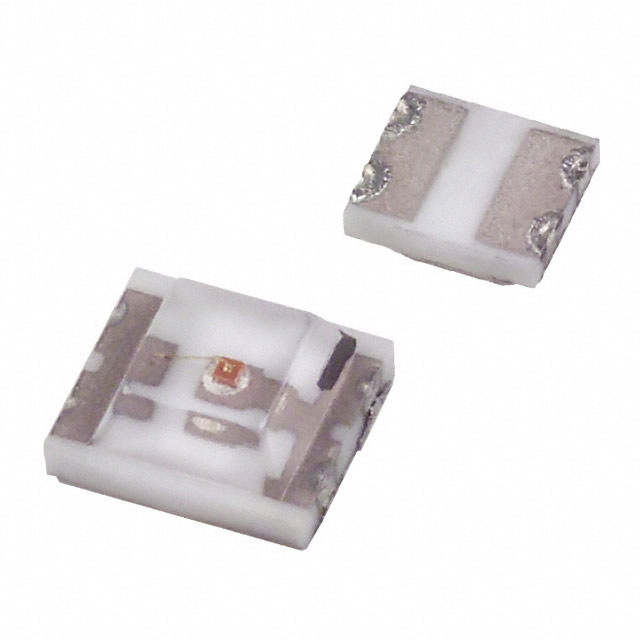

Dialight microLED® series 5973111107F is a red surface-mount LED designed for discrete indication. This component features a 1.7V forward voltage (typical) and a 660nm peak wavelength, delivering 8mcd luminous intensity at a 10mA test current. The 4-SMD, No Lead package, measuring 3.05mm L x 2.62mm W with a maximum height of 1.02mm, utilizes a flat-top rectangular lens with a wide 170° viewing angle. This LED is supplied in Tape & Reel packaging and finds application in industrial automation, medical devices, and consumer electronics requiring reliable visual status indication.
Additional Information
Series: microLED®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.05mm L x 2.62mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 170° |
| Height (Max) | 1.02mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 4-SMD |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.27mm x 1.65mm |
