5973002302F
LED RED 2PLCC SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

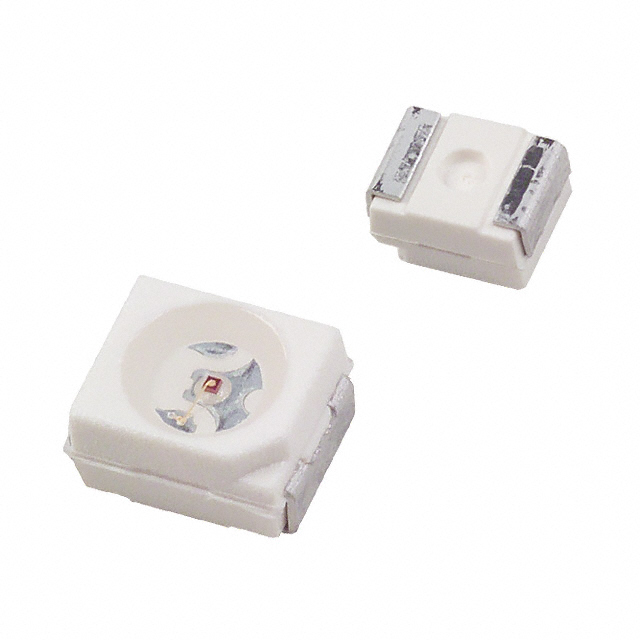

Dialight 597 Series Red 2-PLCC SMD LED. This discrete indicator component, part number 5973002302F, features a dominant wavelength of 630nm and a peak wavelength of 639nm, emitting a distinct red light. Engineered for surface mounting with a 2-PLCC package, it offers a typical forward voltage of 2.2V and a forward current of 20mA, producing a luminous intensity of 140mcd. The LED's dimensions are 3.20mm in length and 2.80mm in width, with a maximum height of 2.10mm, and a wide 120° viewing angle. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: 597RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 2-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 140mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 639nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | - |
