5972401213F
LED YELLOW CLEAR SMD R/AManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

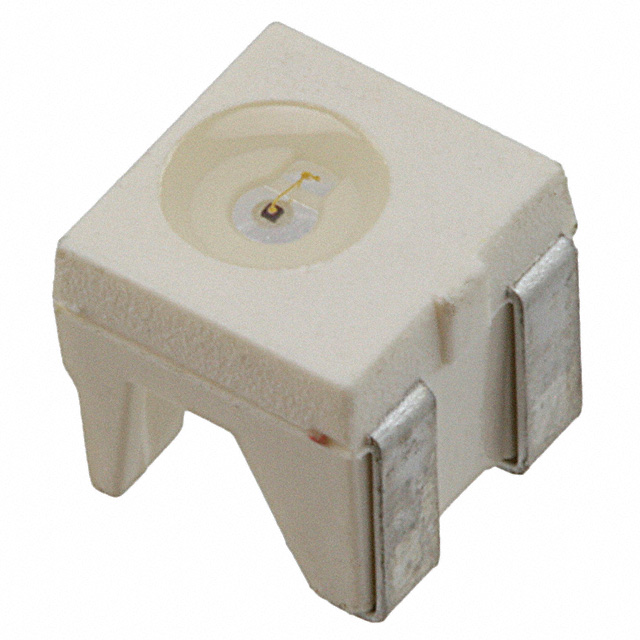

Dialight 597 Series, 5972401213F. This yellow LED indication component features a wavelength dominant at 587nm and peak at 591nm, with a typical forward voltage of 1.8V. It is designed for surface mount, right-angle installation within a 2-SMD, Boomerang package. The clear, colorless lens measures 2.40mm in diameter and offers a 120° viewing angle. Tested at 10mA, this discrete LED provides a millicandela rating of 70mcd. The component's dimensions are 3.60mm L x 4.00mm W, with a maximum height of 4.20mm. It is supplied in Tape & Reel (TR) packaging. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Color | Yellow |
| Size / Dimension | 3.60mm L x 4.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 70mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 4.20mm |
| Wavelength - Peak | 591nm |
| Wavelength - Dominant | 587nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
