5972222602F
LED YELLOW CLEAR 1208 SMD R/AManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

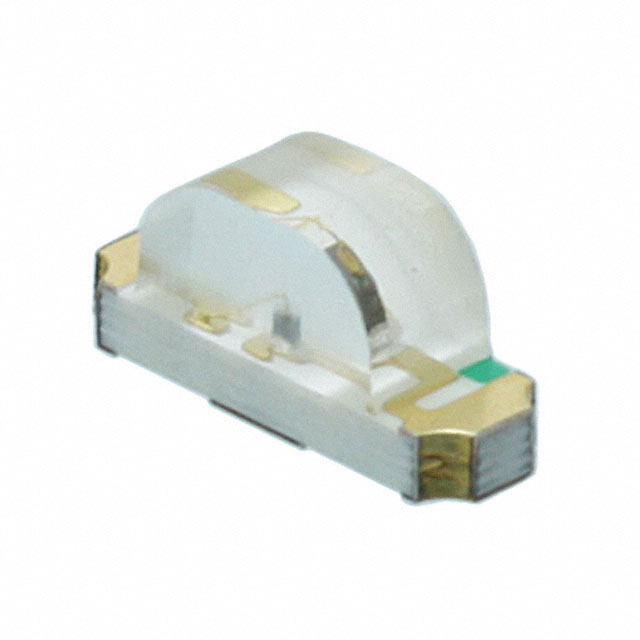

Dialight 597 Series 5972222602F is a yellow, clear lens, surface-mount LED with a right-angle mounting type. This discrete LED operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a luminous intensity of 125mcd. Its dominant wavelength is 589nm, with a peak wavelength of 588nm. The component features a 1208 package size with a 2-SMD, No Lead configuration, measuring 3.00mm in length and 2.00mm in width. The rectangular lens, with a domed top, offers a wide viewing angle of 130°. This component is suitable for various indication applications across industrial and consumer electronics sectors.
Additional Information
Series: 597RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 2-SMD, No Lead |
| Color | Yellow |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 125mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 588nm |
| Wavelength - Dominant | 589nm |
| Supplier Device Package | 1208 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
