5972111407F
LED RED CLEAR 1208 SMD R/AManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

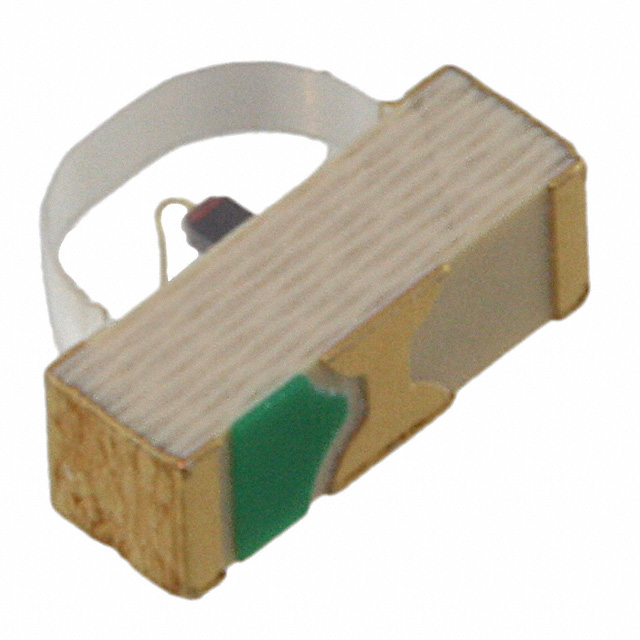

Dialight microLED® 1208 SMD R/A, Part Number 5972111407F, is a discrete red LED designed for surface mount, right-angle applications. This component features a 1.7V forward voltage (typical) and operates at 20mA test current, producing a millicandela rating of 12.4mcd. The clear, colorless lens is a rectangle with a domed top, providing a 130° viewing angle. Manufactured by Dialight, this LED is supplied in a 2-SMD, No Lead package, specifically the 1208 supplier device package, and is presented on tape and reel. Its compact dimensions of 3.00mm L x 2.00mm W and a maximum height of 1.00mm make it suitable for space-constrained designs in industrial automation, medical equipment, and consumer electronics where reliable visual indication is critical.
Additional Information
Series: microLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 12.4mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1208 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
