597-3601-602F
LED BLUE 1209 SMDManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

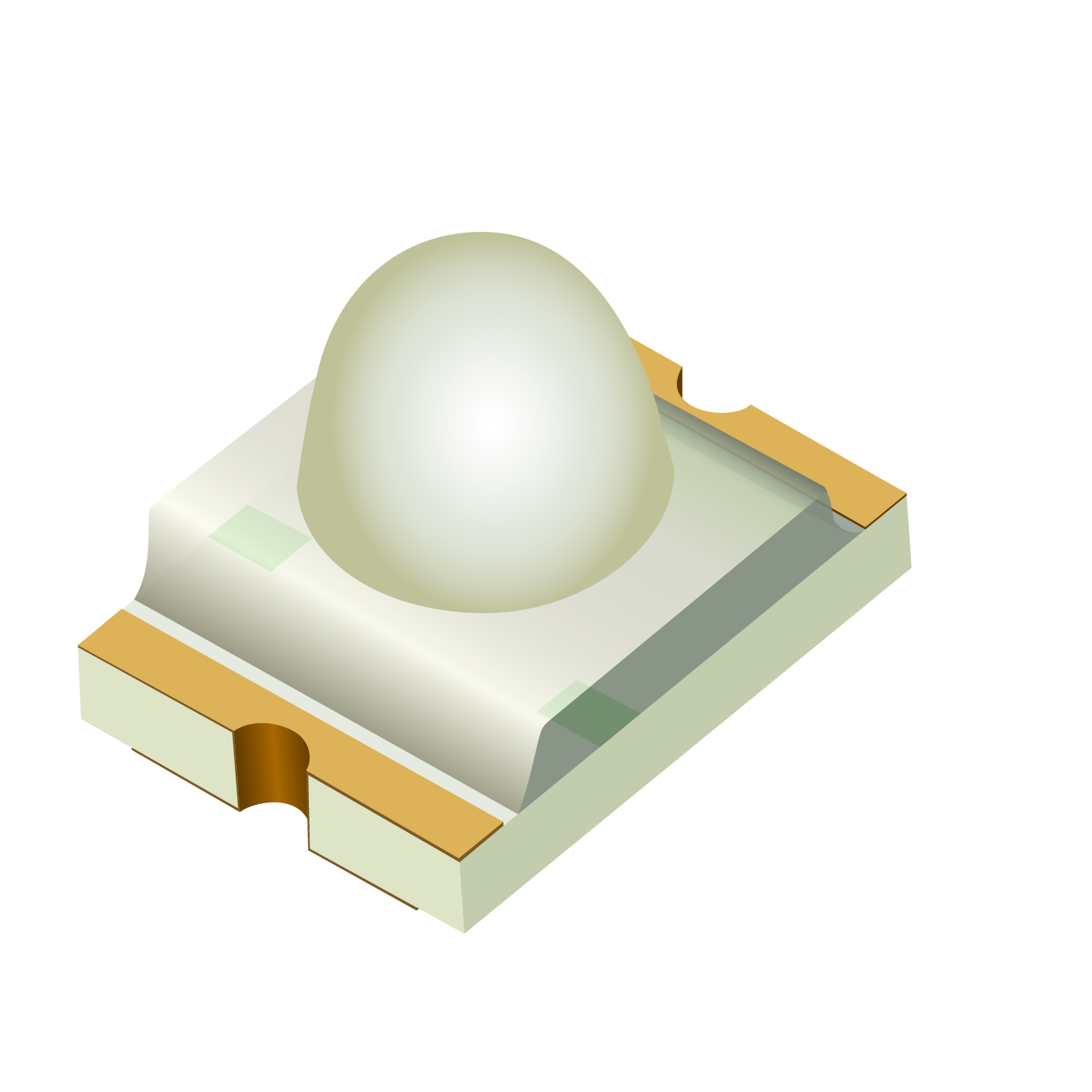

Dialight 597-3601-602F is a blue 470nm LED designed for surface mount applications. This discrete indicator features a 1209 (3224 Metric) package with a standard, round, domed top lens measuring 1.78mm in diameter. With a typical forward voltage of 3.4V and a test current of 20mA, it achieves a luminous intensity of 1400mcd. The LED offers a narrow viewing angle of 25°. Its compact dimensions of 3.20mm L x 2.40mm W and a maximum height of 2.38mm make it suitable for space-constrained designs. This component is commonly utilized in industrial automation, medical devices, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 1209 (3224 Metric) |
| Color | Blue |
| Size / Dimension | 3.20mm L x 2.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1400mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 2.38mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 1209 |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 1.78mm Dia |
