5219946
LED BLUE CLEAR 5MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

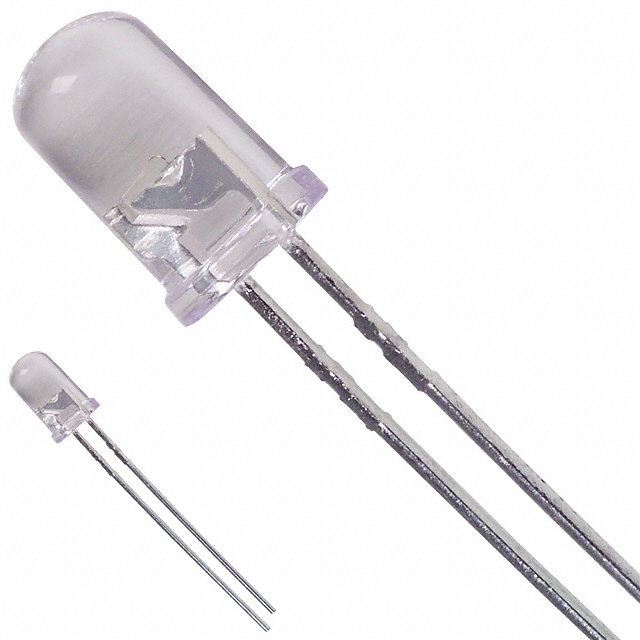

Dialight 521 Series, Part Number 5219946, is a through-hole mounted blue LED with a dominant wavelength of 472nm and a peak wavelength of 470nm. This discrete indicator features a 5mm clear, domed top lens and offers a typical forward voltage of 3.8V at a test current of 20mA, achieving a luminous intensity of 1010mcd. The viewing angle is 30 degrees. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. It is supplied in bulk packaging.
Additional Information
Series: 521RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1010mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.90mm |
| Wavelength - Peak | 470nm |
| Wavelength - Dominant | 472nm |
| Supplier Device Package | 5mm |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
