5219651F

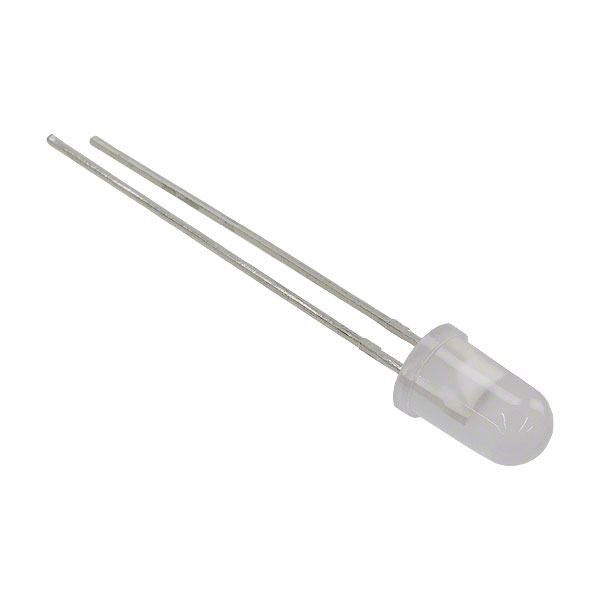

LED GREEN/RED DIFFUSED 5MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More
Green, Red LED Indication - Discrete 2.1V Green, 1.8V Red Radial
Additional Information
Series: 521RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green, Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 40mcd Green, 90mcd Red |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.8V Red |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 60° |
| Height (Max) | 8.64mm |
| Wavelength - Peak | 565nm Green, 660nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
