5219478F

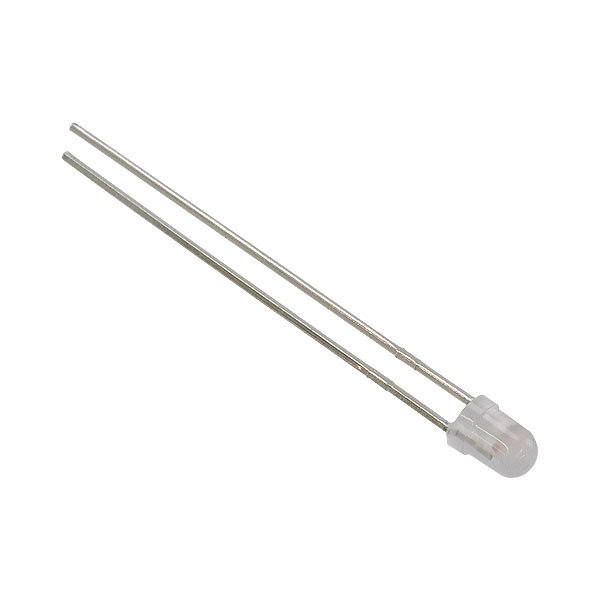

LED GRN/YLW DIFFUSED 3MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More
Green, Yellow 569nm Green, 586nm Yellow LED Indication - Discrete 2.1V Green, 2.1V Yellow Radial
Additional Information
Series: 521RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green, Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6.3mcd Green, 4.3mcd Yellow |
| Configuration | Bidirectional |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Yellow |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 80° |
| Height (Max) | 5.70mm |
| Wavelength - Peak | 565nm Green, 585nm Yellow |
| Wavelength - Dominant | 569nm Green, 586nm Yellow |
| Supplier Device Package | 3mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
Request a Quote
