5219459F

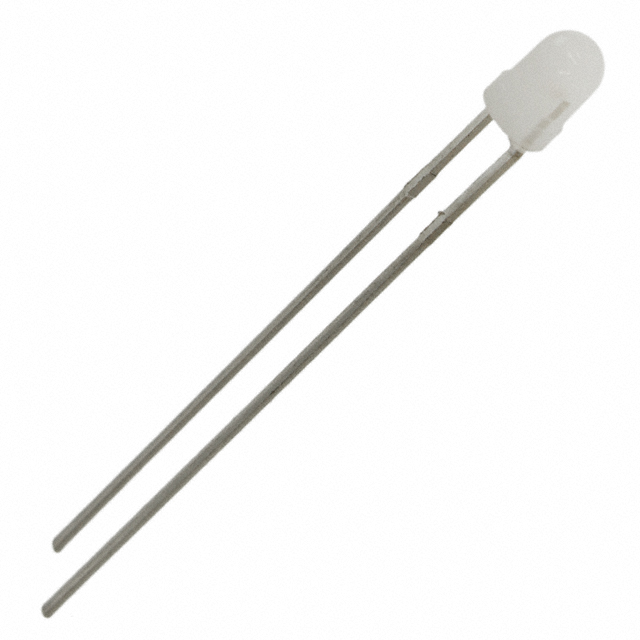

LED GREEN/RED DIFFUSED 3MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More
Green, Red LED Indication - Discrete 2.1V Green, 2V Red Radial
Additional Information
Series: 521RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green, Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd Green, 4.7mcd Red |
| Configuration | Bidirectional |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Lens Color | White |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | 60° |
| Height (Max) | 5.70mm |
| Wavelength - Peak | 565nm Green, 635nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 3mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
Request a Quote
