5219450
LED GREEN/RED DIFFUSED 5MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

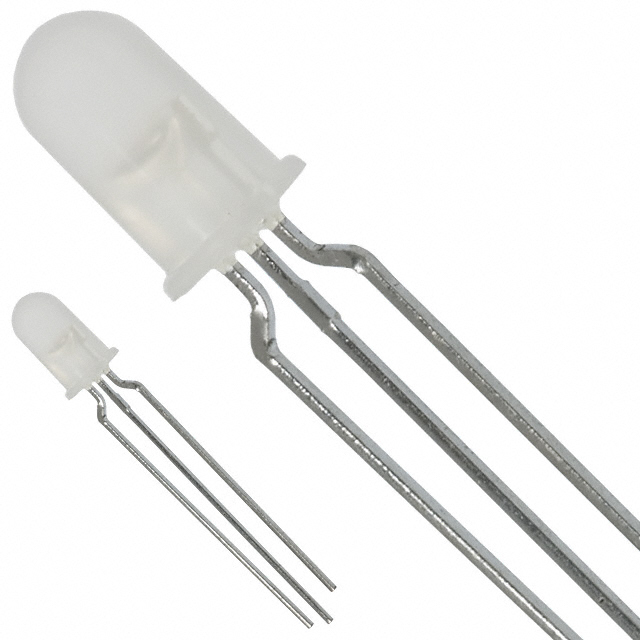

The Dialight 521 Series 5219450 is a diffused, 5mm radial, through-hole LED offering dual color indication in green and red. This component features a common cathode configuration with a typical forward voltage of 2.3V for green and 2.1V for red, both tested at 10mA. The diffused lens provides a wide 65° viewing angle. The green emitter has a dominant wavelength of 565nm and an intensity of 8mcd, while the red emitter operates at 635nm with an intensity of 5mcd. Commonly utilized in industrial control, signaling, and consumer electronics for status indication. This component is supplied in bulk packaging.
Additional Information
Series: 521RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Color | Green, Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 8mcd Green, 5mcd Red |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.3V Green, 2.1V Red |
| Lens Color | White |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | 65° |
| Height (Max) | - |
| Wavelength - Peak | 565nm Green, 635nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 4.83mm Dia |
