5219427F
LED RED DIFFUSED T-1 T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

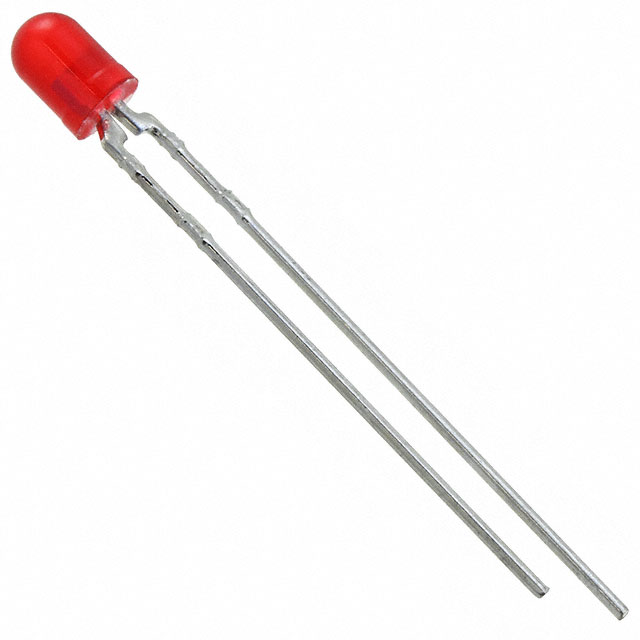

Dialight 521 Series T-1 Through-Hole LED, part number 5219427F, offers a diffused red light output with a dominant wavelength of 630nm and a typical forward voltage of 2V at 10mA test current. This discrete LED features a round, domed top lens with a 3.00mm diameter and a 45° viewing angle, providing 16mcd luminous intensity. The Radial package is suitable for through-hole mounting. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication and visual feedback.
Additional Information
Series: 521RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 16mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 45° |
| Height (Max) | 6.48mm |
| Wavelength - Peak | 650nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
