5219408F
LED GREEN DIFFUSED 3MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

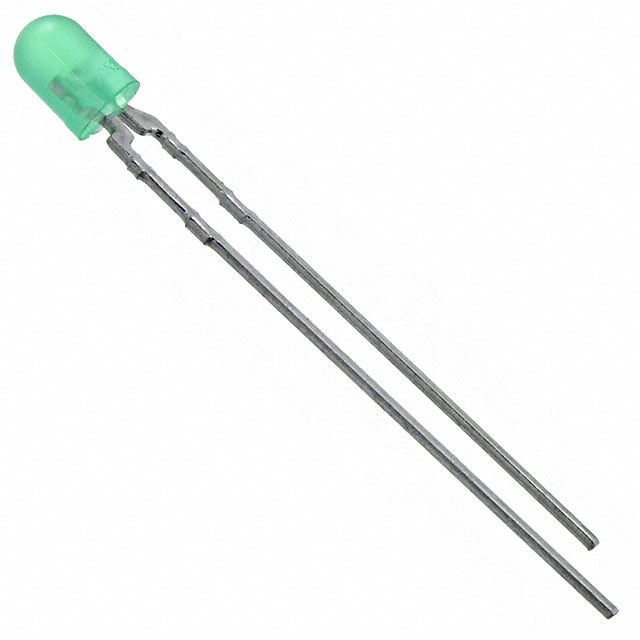

Dialight 521 Series LED, part number 5219408F, features a 3mm diffused green lens with a domed top, providing a 45° viewing angle. This through-hole mounted component operates with a typical forward voltage of 2.1V and a test current of 10mA, yielding a millicandela rating of 16mcd. The dominant wavelength is 572nm, with a peak wavelength of 563nm, ensuring clear green indication. This discrete LED is well-suited for general indication purposes across various industrial and consumer electronics applications, including control panels, status indicators, and safety equipment. Supplied in bulk packaging, it offers a reliable solution for high-volume manufacturing.
Additional Information
Series: 521RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 16mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 45° |
| Height (Max) | 6.48mm |
| Wavelength - Peak | 563nm |
| Wavelength - Dominant | 572nm |
| Supplier Device Package | 3mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
