5219216
LED RED DIFFUSED 3MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

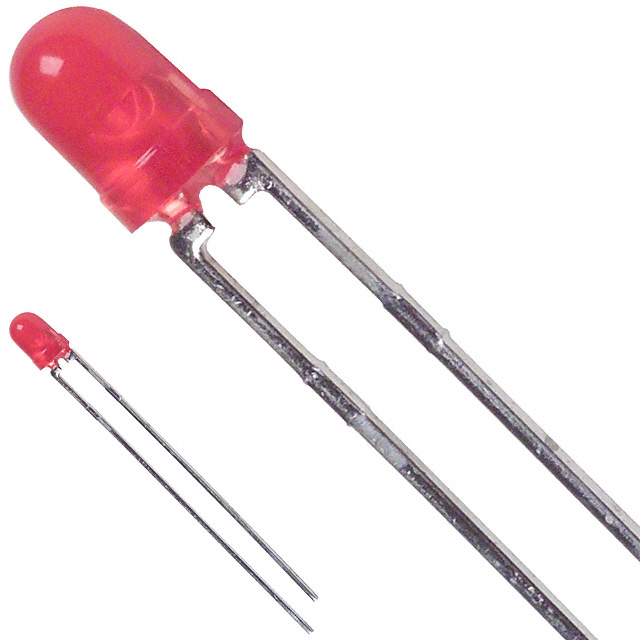

Dialight 521 Series Red Diffused 3mm Through-Hole LED. This discrete component, part number 5219216, features a 2V forward voltage (typical) and 20mA test current, yielding a 10mcd luminous intensity. The diffused red lens, with a 60° viewing angle, is housed in a standard radial package for through-hole mounting. Its 3mm diameter lens and 6.00mm maximum height are characteristic of this series. Applications include industrial control, instrumentation, and consumer electronics, where reliable visual indication is critical. Supplied in bulk packaging.
Additional Information
Series: 521RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 6.00mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
