5219211

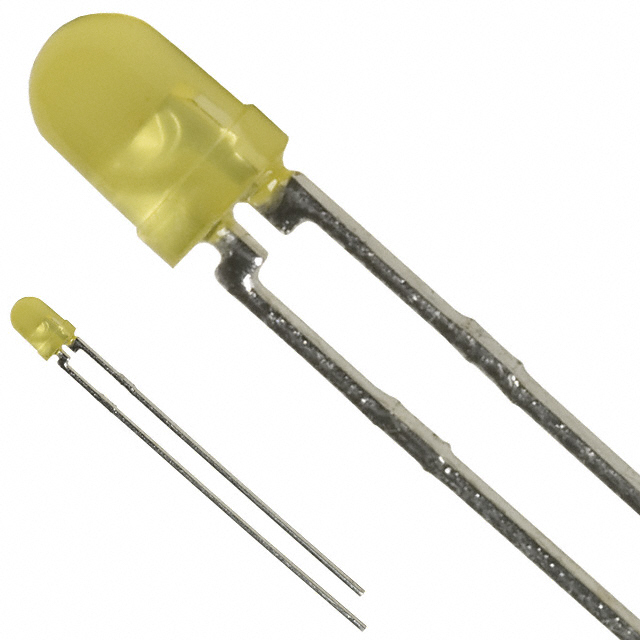

LED YELLOW DIFFUSED 3MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More
Dialight 521 Series Yellow Diffused 3mm Through-Hole LED. Featuring a typical forward voltage of 2.1V and a test current of 20mA, this radial package component emits at a peak wavelength of 585nm with a millicandela rating of 10mcd. The diffused, domed-top lens provides a 60° viewing angle. This component is suitable for various industrial applications requiring reliable visual indication. Supplied in bulk packaging.
Additional Information
Series: 521RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 6.00mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
