5219210
LED GREEN DIFFUSED 3MM T/HManufacturer: Dialight
Categories: LED Indication - Discrete
Quality Control: Learn More

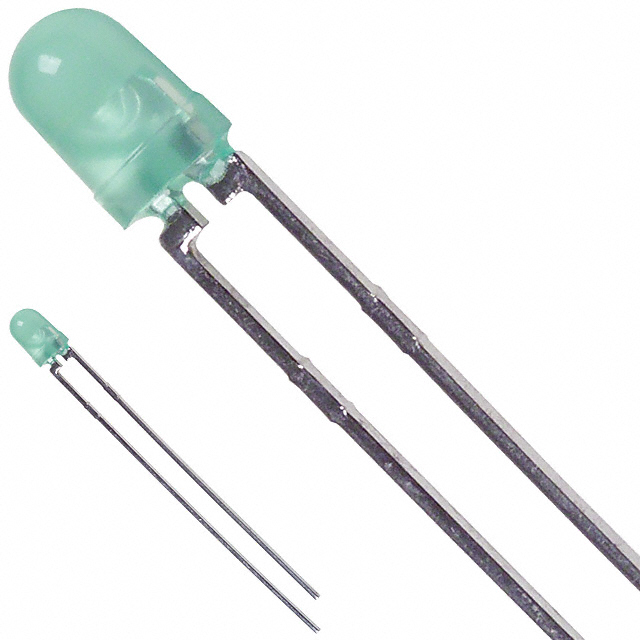

The Dialight 5219210 is a green, diffused 3mm through-hole LED from the 521 series. This discrete indicator component features a forward voltage of 2.1V (typical) and operates at a test current of 20mA, producing a millicandela rating of 12.6mcd. Its dominant wavelength is 565nm, and the diffused lens style with a domed top provides a 60° viewing angle. Typically found in industrial controls, consumer electronics, and medical equipment, this component is supplied in bulk packaging. The radial package design facilitates easy mounting for a variety of applications.
Additional Information
Series: 521RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 12.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 6.00mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
Request a Quote
