CE18CRGBXXX
LED MOD RGB ROUNDManufacturer: Dialight
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

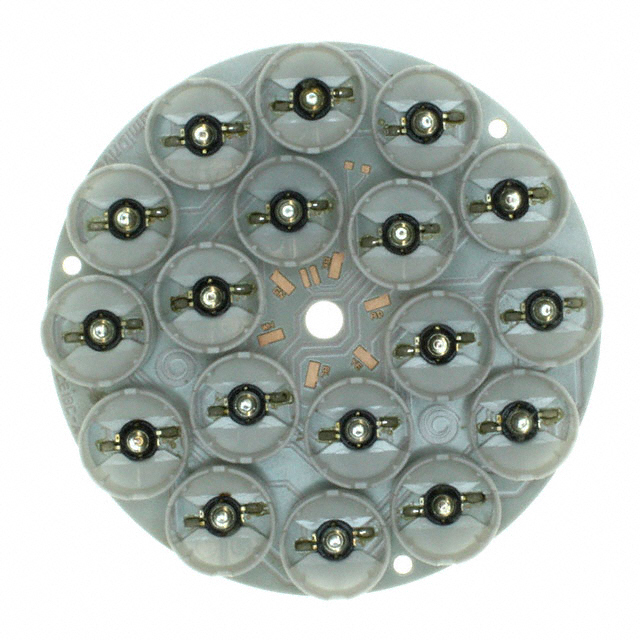

The Dialight CE18CRGBXXX is an RGB LED module designed for high-performance illumination applications. This round module delivers versatile color mixing capabilities with individual forward voltage specifications of 2.95V for red, 3.42V for green, and 3.42V for blue at a test current of 350mA. The module supports a maximum continuous current of 350mA per color channel. Its monochromatic performance is characterized by wavelengths of 627nm for red, 530nm for green, and 455nm for blue. With a diameter of 110.00mm and a height of 15.50mm, this component is suitable for integration into various lighting systems. Applications for this type of LED module span architectural lighting, stage and studio lighting, and general illumination where precise color control is essential.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | Red, Green, Blue (RGB) |
| Wavelength | 627nm Red, 530nm Green, 455nm Blue |
| Size / Dimension | 110.00mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 2.95V Red, 3.42V Green, 3.42V Blue |
| Height | 15.50mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | - |
| Current - Max | 350mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | - |
