5962020002F
LED CBI 1.6MM BI-LVL RED SMD RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Dialight 596 Series LED Circuit Board Indicator, Part Number 5962020002F. This surface mount, right-angle component features two high-efficiency red LEDs, each with a 1.8V forward voltage and 20mA current rating. The individual LEDs offer a 35mcd typical luminous intensity and a 30° viewing angle. Each LED has a 1.60mm diameter, round, domed lens. This component is commonly utilized in industrial control systems, medical equipment, and consumer electronics for status indication. It is supplied in strip packaging.
Additional Information
Series: 596RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Current | 20mA |
| Color | Red (x 2) |
| Voltage Rating | 1.8V |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 35mcd |
| Configuration | 2 High |
| Viewing Angle | 30° |
| Lens Type | - |
| Wavelength - Peak | - |
| Lens Style | Round with Domed Top |
| Lens Size | 1.60mm Dia |
Request a Quote
Clients Also Buy

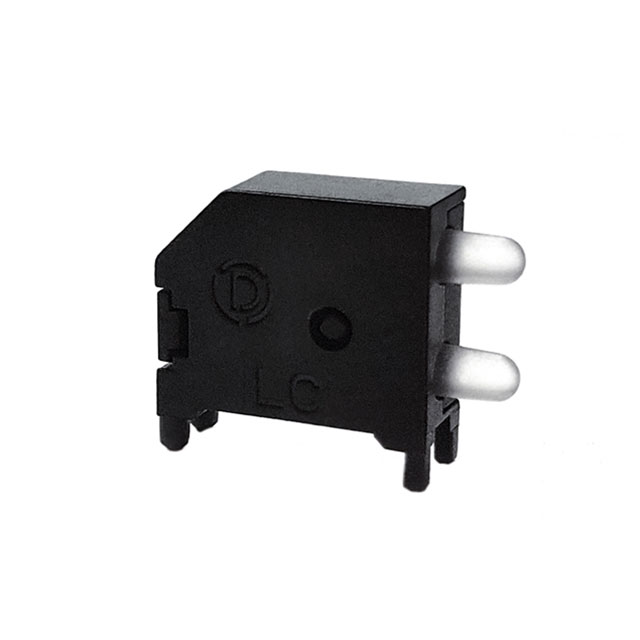

5961010002F
