5922927302F
LED CBI 3MM BI-LVL GRN/YL SMD RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

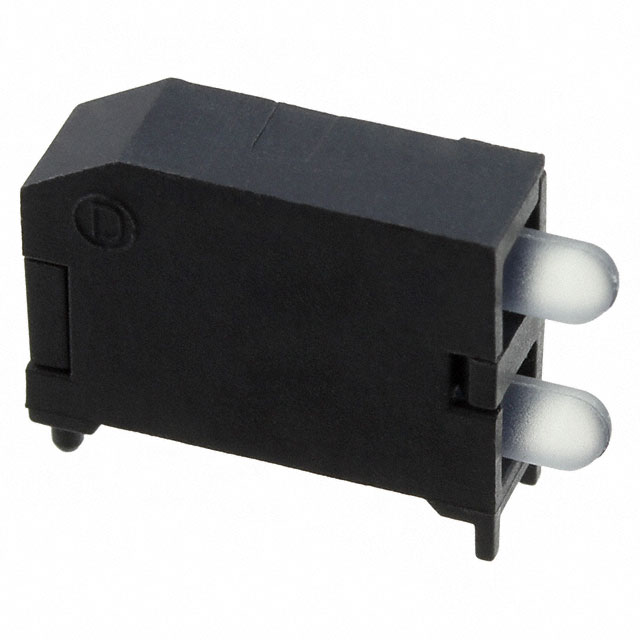

Dialight 592 series LED Circuit Board Indicator, part number 5922927302F. This through-hole component features two high-performance LEDs in a diffused, round, domed lens configuration, each with a 3.00mm diameter. The indicator is configured with one green LED and one yellow LED, suitable for applications requiring distinct visual cues. The green LED operates at 3.7V with a peak wavelength of 523nm and a typical luminous intensity of 56mcd. The yellow LED operates at 2V with a peak wavelength of 591nm and a typical luminous intensity of 60mcd. Both LEDs support a continuous forward current of 30mA. The component is designed for surface mount with a right-angle orientation, facilitating efficient PCB integration. This indicator is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication and diagnostic purposes. The component is supplied in bulk packaging.
Additional Information
Series: 592RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA |
| Color | Green (x 1), Yellow (x 1) |
| Voltage Rating | 3.7V Green, 2V Yellow |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 56mcd Green, 60mcd Yellow |
| Configuration | 2 High |
| Viewing Angle | - |
| Lens Type | Diffused |
| Wavelength - Peak | 523nm, 591nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
