5922429302F
LED CBI 3MM BI-LVL GRN/YL SMDManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

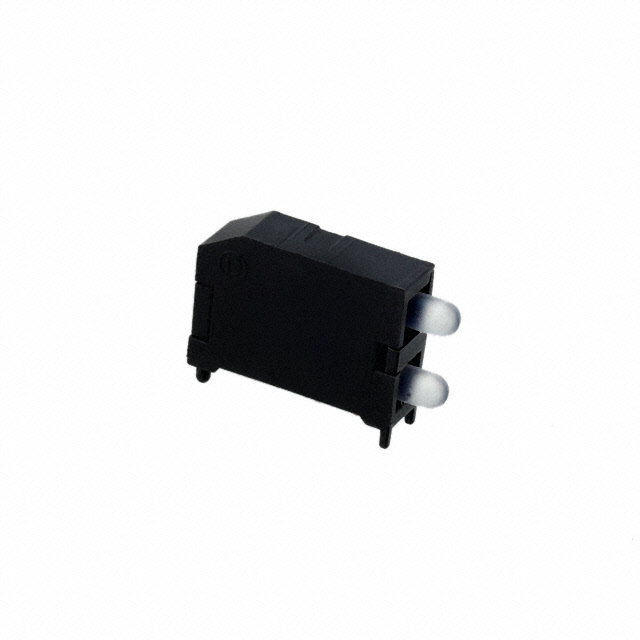

Dialight 592 Series LED Circuit Board Indicator, part number 5922429302F. This two-high, bi-level axial leaded component features one green and one yellow LED. The green LED has a forward voltage of 3.7V and a typical luminous intensity of 56mcd, while the yellow LED operates at 2V with a typical luminous intensity of 2mcd. Both LEDs utilize a 3mm (T-1) round, domed lens style. Packaged in strips, this indicator is suitable for applications in industrial automation, medical equipment, and consumer electronics where clear visual status indication is required.
Additional Information
Series: 592RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Current | - |
| Color | Green (x 1), Yellow (x 1) |
| Voltage Rating | 3.7V Green, 2V Yellow |
| Millicandela Rating | 56mcd Green, 2mcd Yellow |
| Configuration | 2 High |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | - |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
