5922320302F
LED CBI 3MM BI-LVL GN/RED SMD RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

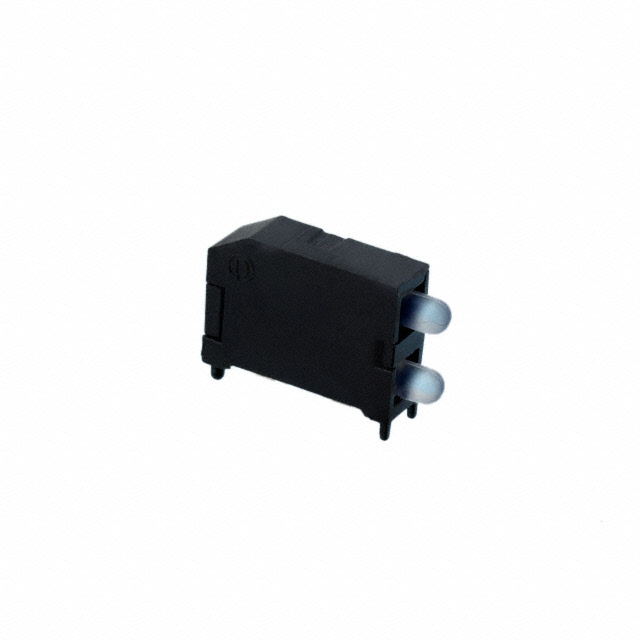

Dialight 592 Series LED Circuit Board Indicator, Part Number 5922320302F. This component features a bi-level configuration with two discrete LEDs: one green and one red. Each LED is rated at 2V and 30mA, with typical luminous intensity of 4mcd for green and 3mcd for red. The LEDs are housed in a 3.00mm diameter round, domed lens style. This indicator is designed for surface mount, right-angle placement on PCBs. The 572nm peak wavelength for the green LED and 660nm peak wavelength for the red LED ensure distinct color differentiation. This component is commonly employed in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: 592RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA |
| Color | Green (x 1), Red (x 1) |
| Voltage Rating | 2V Green, 2V Red |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 4mcd Green, 3mcd Red |
| Configuration | 2 High |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 572nm, 660nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
