5710132
LED CBI 2MM BI-LVL GREEN/YLW RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

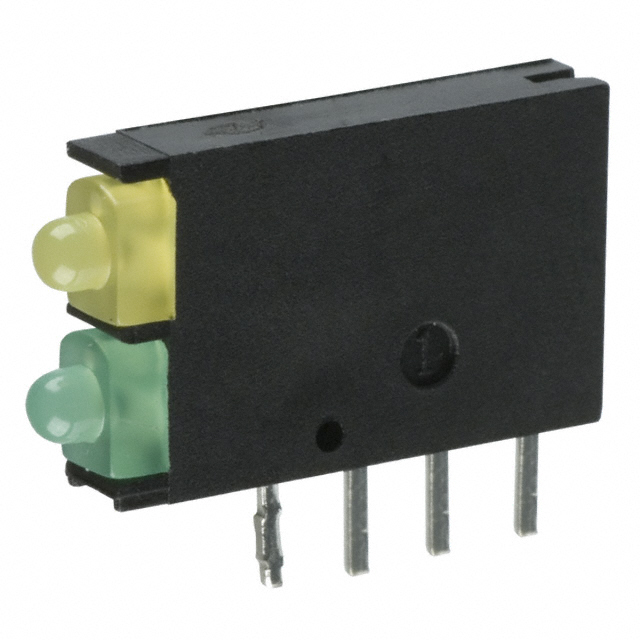

The Dialight 5710132 is a 571 Series LED Circuit Board Indicator featuring a right-angle, through-hole mounting style. This component provides two high-performance LEDs: one green and one yellow, both diffused and tinted with a round, domed top lens measuring 2.00mm in diameter. The green LED operates at a typical forward voltage of 2.1V and 20mA, with a peak wavelength of 565nm and a millicandela rating of 10mcd. The yellow LED also operates at 2.1V and 20mA, exhibiting a peak wavelength of 585nm and a millicandela rating of 8mcd. The viewing angle for both LEDs is 38°. This component is commonly utilized in industrial control equipment, medical devices, and telecommunications infrastructure.
Additional Information
Series: 571RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green (x 1), Yellow (x 1) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd Green, 8mcd Yellow |
| Configuration | 2 High |
| Viewing Angle | 38° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm, 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
