5700100132
LED CBI 2MM 3X1 GRN/RED/YL RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

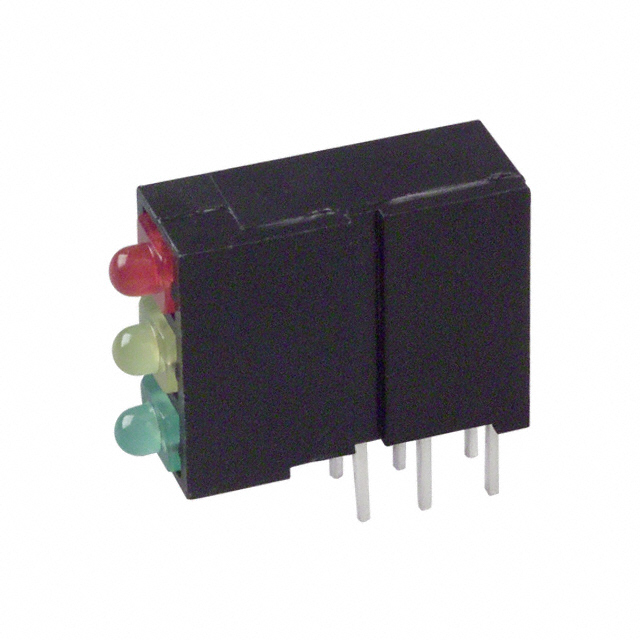

Dialight 570 Series LED Circuit Board Indicator, part number 5700100132. This right-angle, through-hole component features three high-density LEDs in a 2.00mm diameter round, domed top configuration. The indicator includes one green LED with a 2.2V forward voltage, 25mA current rating, 565nm peak wavelength, and 10mcd typical luminous intensity. It is accompanied by one red LED (2V, 30mA, 635nm, 15mcd) and one yellow LED (2.1V, 30mA, 585nm, 8mcd). All LEDs utilize diffused, tinted lens technology with a 70° viewing angle. This component is suitable for applications in industrial automation, control systems, and medical equipment. Supplied in bulk packaging.
Additional Information
Series: 570RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 25mA Green, 30mA Red, 30mA Yellow |
| Color | Green (x 1), Red (x 1), Yellow (x 1) |
| Voltage Rating | 2.2V Green, 2V Red, 2.1V Yellow |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd Green, 15mcd Red, 8mcd Yellow |
| Configuration | 3 High |
| Viewing Angle | 70° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm, 635nm, 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
