5690112200
LED CBI 3MM BI-LVL GRN RA PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

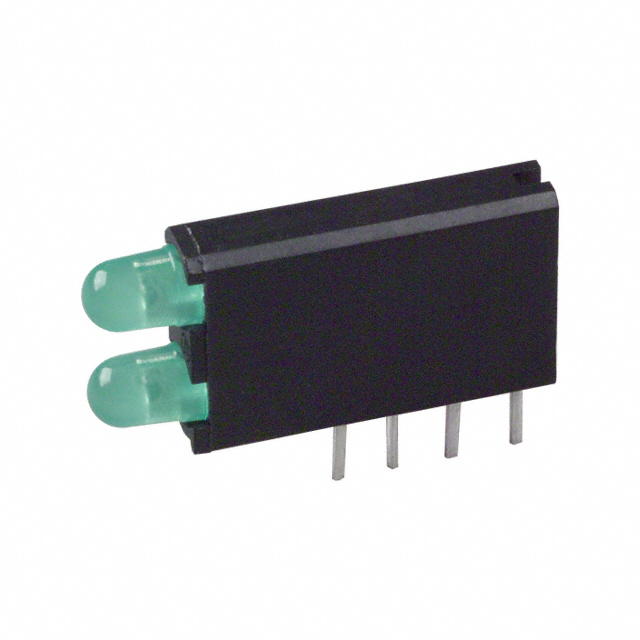

Dialight 569 Series LED Circuit Board Indicator, part number 5690112200. This component features a 2-high, bi-level configuration with two green diffused, tinted LEDs. Each LED has a typical forward voltage of 2.1V and is rated for 20mA operation, delivering a millicandela rating of 12.6mcd at a peak wavelength of 565nm. The 3mm, T-1 size lens has a round, domed top for a 60° viewing angle. This right-angle, through-hole mounting indicator is designed for PCB integration. Applications include industrial automation, medical equipment, and consumer electronics where reliable visual feedback is critical. The component is supplied in bulk packaging.
Additional Information
Series: 569RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green (x 2) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 12.6mcd |
| Configuration | 2 High |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
