5682212232
LED CBI 3MM QUAD GREEN/YLW RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

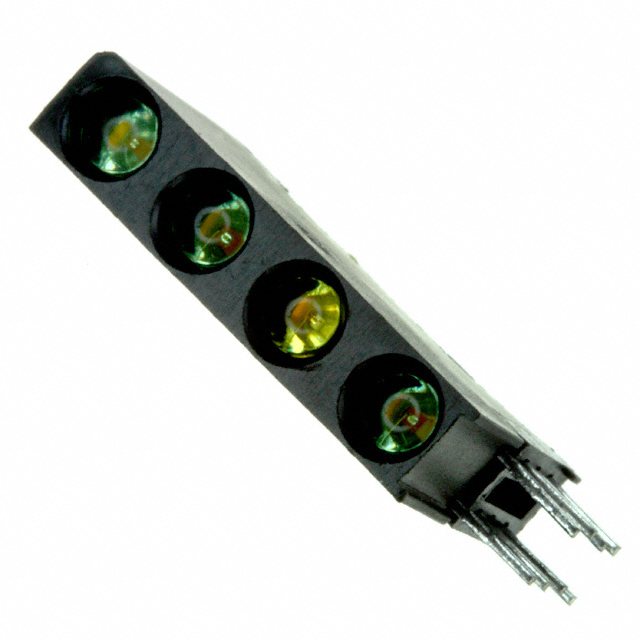

Dialight 568 Series LED Circuit Board Indicator, part number 5682212232. This through-hole, right-angle component features a 3mm (T-1) round, domed, tinted lens. It offers a four-high configuration with three green LEDs and one yellow LED. The green LEDs have a peak wavelength of 565nm and a millicandela rating of 50mcd, while the yellow LED has a peak wavelength of 585nm and a millicandela rating of 30mcd. Each LED is rated for 2.1V and 10mA, with a viewing angle of 45°. This component is commonly utilized in industrial control systems, medical equipment, and test and measurement instrumentation.
Additional Information
Series: 568RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green (x 3), Yellow (x 1) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 50mcd Green, 30mcd Yellow |
| Configuration | 4 High |
| Viewing Angle | 45° |
| Lens Type | Tinted |
| Wavelength - Peak | 565nm, 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
