5680704444
LED CBI 3MM QUAD GRN/YELLOW RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

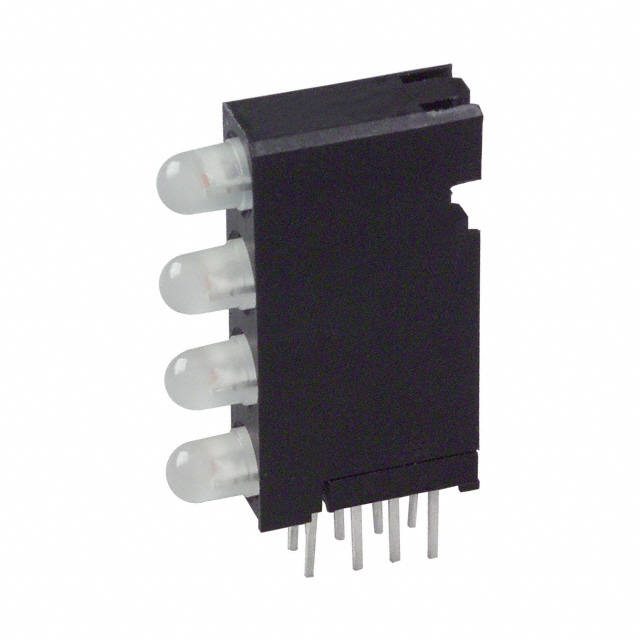

The Dialight 568 Series LED Circuit Board Indicator, part number 5680704444, features a right-angle, through-hole mounting style with a 3mm (T-1) diffused lens. This indicator offers a configuration of four high LEDs, with four green and four yellow elements. The green LEDs have a forward voltage rating of 2.1V and a current rating of 30mA, producing a typical millicandela rating of 6.3mcd and a peak wavelength of 565nm. The yellow LEDs operate at a forward voltage of 2.1V with a 20mA current rating, yielding 4.3mcd and a peak wavelength of 585nm. Both colors exhibit a viewing angle of 80°. This component is commonly utilized in industrial automation, test and measurement equipment, and consumer electronics applications.
Additional Information
Series: 568RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA Green, 20mA Yellow |
| Color | Green, Yellow (x 4) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 6.3mcd Green, 4.3mcd Yellow |
| Configuration | 4 High |
| Viewing Angle | 80° |
| Lens Type | Diffused |
| Wavelength - Peak | 565nm, 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
