5680102323
LED CBI 3MM QUAD GRN/YL RA PCMNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

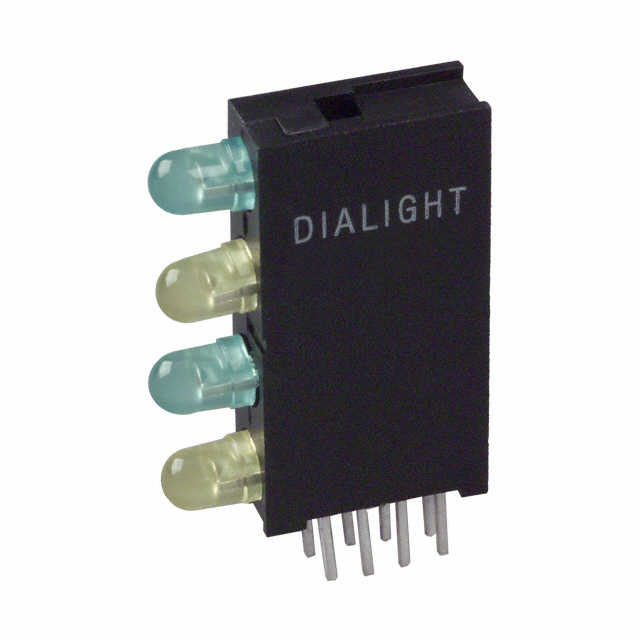

Dialight 568 Series LED Circuit Board Indicator, part number 5680102323. This right-angle, through-hole component features a 4-high configuration with two green and two yellow LEDs. Each LED has a 3mm (T-1) diffused, tinted, domed top lens. The green LEDs operate at a typical forward voltage of 2.1V and 10mA, providing 12.6mcd luminous intensity with a peak wavelength of 565nm and a 60° viewing angle. The yellow LEDs also operate at 2.1V and 10mA, delivering 10mcd luminous intensity with a peak wavelength of 583nm and a 60° viewing angle. This component is suitable for applications in industrial automation, medical equipment, and consumer electronics where compact, right-angle illumination is required. Packaged in bulk.
Additional Information
Series: 568RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green (x 2), Yellow (x 2) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 12.6mcd Green, 10mcd Yellow |
| Configuration | 4 High |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm, 583nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
