5680102222
LED CBI 3MM QUAD GREEN RAManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

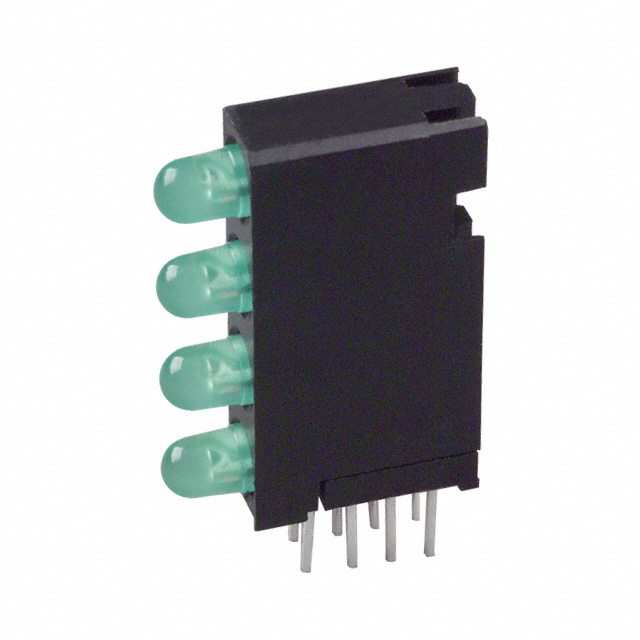

Dialight 568 Series LED Circuit Board Indicator, Part Number 5680102222. This right-angle, through-hole component features four high-intensity green LEDs, each with a diffused, tinted lens offering a 60° viewing angle. The individual LEDs are 3mm (T-1) size with a round, domed top. Each LED operates at a typical voltage of 2.1V and a current of 10mA, achieving a millicandela rating of 12.6mcd at a peak wavelength of 565nm. This indicator is suitable for applications in industrial automation, telecommunications infrastructure, and medical equipment where reliable visual feedback is critical. Packaged in bulk.
Additional Information
Series: 568RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green (x 4) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 12.6mcd |
| Configuration | 4 High |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
