LED CBI 3MM QUAD RED RA PC MNTManufacturer: Dialight
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

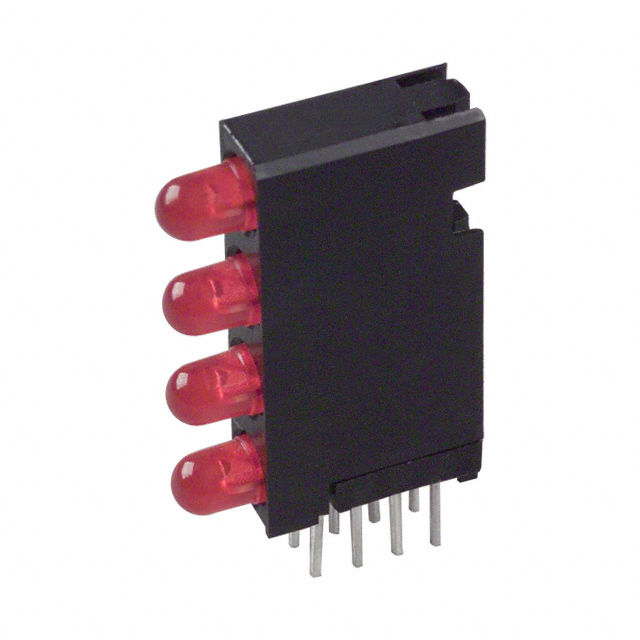

Dialight 568 Series LED Circuit Board Indicator, part number 5680101111, features a right-angle, through-hole mounting configuration for efficient PCB layout. This component integrates four high-performance red LEDs, each with a 3mm (T-1) diffused, tinted lens and a domed top, providing a 60° viewing angle. Operating at a typical forward voltage of 2.1V and a current of 10mA, each LED delivers a peak wavelength of 635nm and a millicandela rating of 4mcd. This robust design is commonly employed in industrial control, telecommunications infrastructure, and medical equipment where reliable visual status indication is critical. The component is supplied in bulk packaging.
Additional Information
Series: 568RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Red (x 4) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 4mcd |
| Configuration | 4 High |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
